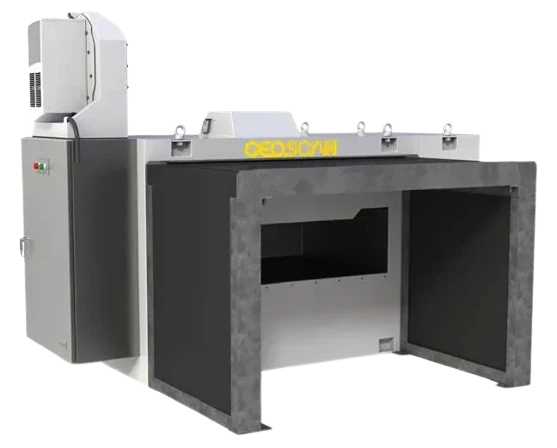

GEOSCAN GOLD is a premium elemental analyser using the highest specification PGNAA (prompt gamma neutron activation analysis) technology available. It provides previously unattainable levels of risk-free, real time measurement performance to the resources sector to help digitalise and control ore quality.

GEOSCAN GOLD measures:

–        elements in primary crushed rock in conveyed flows at <100tph to >10,000tph irrespective of belt speed, particle size, mineralogy, dust, moisture, or segregation/layering,

–        most elements from Carbon onwards in the periodic table, including Gold, over various measurement times and concentration levels,

–        selected elements to below 1ppm,

–        where conveyor belts contain chlorine or steel cords,

–        Gold directly over 5-10 minute increments and other elements, including proxies for Gold (e.g. S, Cu, etc.), with high precisions over each 30 seconds of flow.

Measurement data is used concurrently for various applications: bulk sorting, ore blending, ore reconciliation, ore tracking, feed forward control, metal accounting, etc.

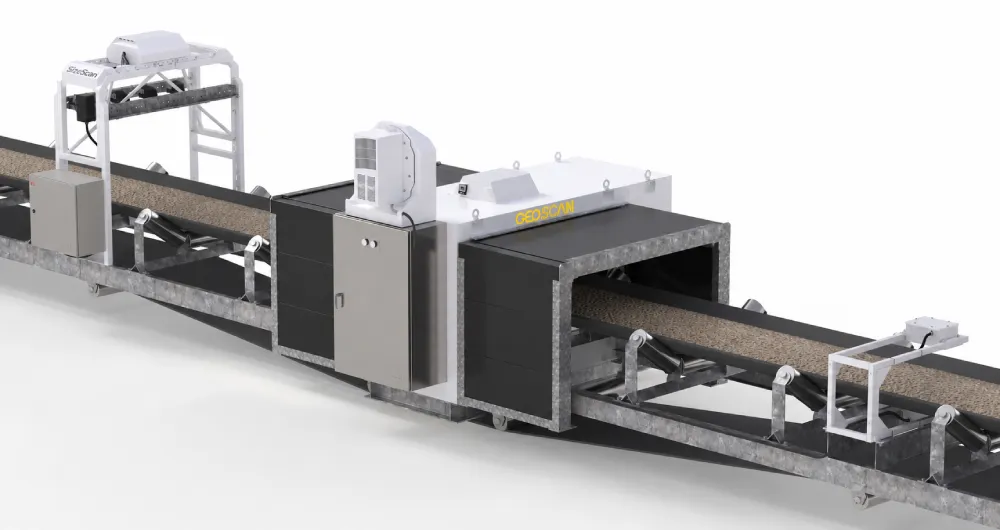

GEOSCAN GOLD is the new standard in representative, real time, conveyed material measurement using Scantech’s Rocks2data customisation module. Successful performance is already proven in many challenging bulk ore sorting applications in base metals and PGMs. The optional moisture analyser uses the microwave transmission technique to measure the moisture content of the material.

"Modern online analyzers make it possible to permanently control the raw material quality delivered from the quarry to the stockyard even if the deposit is disturbed and the raw material quality varies over a wide range"

H Lieberwirth, Takraf Gmbh, Cement International, 1/2013
